1. Introduction
These operating instructions contains important information on operating and maintaining the product.
Please be sure to observe the safety instructions and carefully read the assembly instructions and the quick start guide supplied with the device.
The current version of the assembly instructions and the quick start guide can be found here.
1.1. Explanation of the safety instructions
Warning! | |
Caution! | |
Note! |
Warning!
Indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
Caution!
Indicates a hazard with low risk which, if not avoided, may result in minor or moderate injury.
Note!
Indicates information that is considered important but is not related to hazards
2. Intended use
The HEA•THOR IoT is an electronic heating rod for heating drinking water and heating water.
The device is intended exclusively for heating water in closed, pressure-resistant hot water tanks or buffer tanks.
The HEA•THOR IoT is intended for stationary use in domestic technical systems and may only be operated in suitable containers with sufficient water content and tested pressure resistance.
The device is designed for operation with electrical energy in accordance with the nominal values specified on the type plate.
2.1. Disclaimer and warranty exclusion
The information in this manual has been carefully researched and checked. However, the manufacturer does not guarantee the accuracy, completeness or actuality of the information provided. Any use of the product described in this manual is at your own risk. The manufacturer is not liable for any damage caused by improper handling, installation or use of the product.
Always follow the safety instructions given in this manual to avoid injury or damage.
Changes or modifications to the products without the express approval of the manufacturer can affect safety and performance and will void the warranty.
Please be sure to read the safety instructions and information on how to assemble the device correctly in the assembly instructions provided with the device!
The product complies with legal, national and European requirements.
The company name and product designation are trademarks of my-PV GmbH.
All rights reserved
3. Safety instructions
The device is intended exclusively for heating drinking water and heating water in accordance with (VDI 2035) in a closed or open metal storage tank.
During operation, the heating element must be completely immersed in the medium to be heated on all sides. The thermally induced flow must not be impeded.
The installation position must be horizontal or vertical. A sleeve with a suitable thread size (G1 ½") must be available. Alternatively, installation can be carried out using a lock nut, which is not included in the scope of delivery. In front of the installation sleeve, "installation length +150 mm" must be kept free for installation and servicing.
The housing must not become damp or wet; it is only suitable for dry indoor areas. There is a risk of fatal electric shock!
Do not install the device in an environment contaminated with ammonia.
Do not install the device in dusty environments.
The ventilation slots on the housing must not be covered under any circumstances.
The device housing may become warm during operation.
Avoid exposure to extreme heat, cold or direct sunlight during storage and operation.
This device can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised or instructed in the safe use of the device and understand the resulting dangers. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.
The heating output must be adapted to the volume of the medium to be heated. The user is responsible for making the correct selection. The specified surface load must be observed. If necessary, consult the manufacturer before putting the device into operation.
A fixed electric potential equalisation must be established for the hot water tank.
The maximum operating pressure is 10 bar.
4. Assembly
Information on installing the HEA•THOR IoT can be found in the assembly instructions supplied with the device.
The current version of the assembly instructions can be found here.
5. Technical Data
| Product | HEA•THOR IoT 3.5 kW | HEA•THOR IoT 9 kW |
|---|---|---|
Heating capacity | 3.500 W | 9.000 W |
Mains connection | Single-phase, 230 V, 50 Hz | Three-phase 3 x 230 V, 50 Hz |
Standby consumption | <1,5 W | <1,5 W |
Adjustment options | via rotary knob, my-PV Websetup or my-PV Cloud | via rotary knob, my-PV Websetup or my-PV Cloud |
Interfaces | Ethernet RJ45, WLAN, RS485, potential-free switching output | Ethernet RJ45, WLAN, RS485, potential-free switching output |
Operating temperature range | The ambient temperature at the housing must not exceed 40°C | The ambient temperature at the housing must not exceed 40°C |
Protection class | IP 21 | IP 21 |
Dimensions (L x H x W) | 580 x 133 x 117 mm (with heating element) | 865 x 133 x 117 mm (with heating element) |
Heating rod length | 460 mm ( from sealing level) | 740 mm ( from sealing level) |
Heating rod thread dimension | G 1 1/2 inch | G 1 1/2 inch |
Heating-free zone | 140 mm from seal surface | 140 mm from seal surface |
Warranty | 2 years (except calcification) | 2 years (except calcification) |
Tightening torque | 50 Nm | 50 Nm |
Max. operating pressure | 10 bar | 10 bar |
Mounting position | horizontal / vertically standing | horizontal / vertically standing |
my-PV item number | 21-0300 | 21-0900 |
Product
Heating capacity
HEA•THOR IoT 3.5 kW
3.500 W
HEA•THOR IoT 9 kW
9.000 W
Product
Mains connection
HEA•THOR IoT 3.5 kW
Single-phase, 230 V, 50 Hz
HEA•THOR IoT 9 kW
Three-phase 3 x 230 V, 50 Hz
Product
Standby consumption
HEA•THOR IoT 3.5 kW
<1,5 W
HEA•THOR IoT 9 kW
<1,5 W
Product
Adjustment options
HEA•THOR IoT 3.5 kW
via rotary knob, my-PV Websetup or my-PV Cloud
HEA•THOR IoT 9 kW
via rotary knob, my-PV Websetup or my-PV Cloud
Product
Interfaces
HEA•THOR IoT 3.5 kW
Ethernet RJ45, WLAN, RS485, potential-free switching output
HEA•THOR IoT 9 kW
Ethernet RJ45, WLAN, RS485, potential-free switching output
Product
Operating temperature range
HEA•THOR IoT 3.5 kW
The ambient temperature at the housing must not exceed 40°C
HEA•THOR IoT 9 kW
The ambient temperature at the housing must not exceed 40°C
Product
Protection class
HEA•THOR IoT 3.5 kW
IP 21
HEA•THOR IoT 9 kW
IP 21
Product
Dimensions (L x H x W)
HEA•THOR IoT 3.5 kW
580 x 133 x 117 mm (with heating element)
HEA•THOR IoT 9 kW
865 x 133 x 117 mm (with heating element)
Product
Heating rod length
HEA•THOR IoT 3.5 kW
460 mm ( from sealing level)
HEA•THOR IoT 9 kW
740 mm ( from sealing level)
Product
Heating rod thread dimension
HEA•THOR IoT 3.5 kW
G 1 1/2 inch
HEA•THOR IoT 9 kW
G 1 1/2 inch
Product
Heating-free zone
HEA•THOR IoT 3.5 kW
140 mm from seal surface
HEA•THOR IoT 9 kW
140 mm from seal surface
Product
Warranty
HEA•THOR IoT 3.5 kW
2 years (except calcification)
HEA•THOR IoT 9 kW
2 years (except calcification)
Product
Tightening torque
HEA•THOR IoT 3.5 kW
50 Nm
HEA•THOR IoT 9 kW
50 Nm
Product
Max. operating pressure
HEA•THOR IoT 3.5 kW
10 bar
HEA•THOR IoT 9 kW
10 bar
Product
Mounting position
HEA•THOR IoT 3.5 kW
horizontal / vertically standing
HEA•THOR IoT 9 kW
horizontal / vertically standing
Product
my-PV item number
HEA•THOR IoT 3.5 kW
21-0300
HEA•THOR IoT 9 kW
21-0900
6. Device description
The HEA•THOR IoT can be controlled via Modbus TCP/RTU, HTTP or API.
In combination with a dynamic electricity tariff, the HEA•THOR IoT can be controlled via the my-PV DTO to automatically heat the water at the most favourable electricity prices.
6.1. Control and display elements
1. Rotary knob
2. Temperature display
3. Fault display
4. LAN connection display
5. WLAN connection display
6.2. Possible Settings with the rotary knob
6.2.1. Set the target temperature
1.
Press and hold the rotary knob for at least one second
2.
The current target temperature flashes
3.
Turn the rotary knob to the desired target temperature.
4.
To save the setting, press the rotary knob once
5.
The current storage temperature is displayed again
6.2.2. Resetting the STL (safety temperature limiter)
The STL is factory-set to trigger at temperatures above 98°C. Before you can reset the STL, the temperature must have dropped by at least 10°C.
To reset the STL, press the rotary knob for at least 5 seconds.
6.2.3. Reset to factory settings
You can reset the HEA•THOR IoT to factory settings at any time using the rotary knob.
To do this, press the rotary knob and hold it down for at least 10 seconds.
Once the factory reset has been completed, the HEA•THOR IoT will restart.
7. Local websetup
The websetup is a single HTML file that is saved locally after downloading. After that, Internet access is no longer necessary.
It only connects to the device within the local network, while remote access is only possible via the my-PV Cloud.
7.1. Download local websetup
Download the my-PV Websetup to your end device beforehand:
http://www.my-pv.com/download/currentversionget.php
7.2. Connect the HEA•THOR IoT with the local web interface
When opening for the first time, the IP address range of the network in which the device is located must be set. The entry is saved by the web browser, but the address range can be redefined at any time via Settings and the "IP search range" button.
If the IP address of the device is known, it can also be entered directly by selecting "Known IP address".
7.3. Home – Homepage
The start page offers the same information in the web browser as the home screen on the display.
The countdown (10 seconds) next to the Home button shows the time remaining until the next data update.
The websetup of other my-PV devices in the same network can be accessed directly via a quick selection in the top right-hand corner.
The HEA•THOR IoT can be deactivated with "Device status on/off".
7.3.1. Widgets
If you are on the start page, the "Arrange dashboard" button is available under Settings. This allows you to rearrange the windows on the start page ("Widgets"). To hide a widget, drag it under the horizontal line and press the "Save" button to save the new arrangement.
7.4. Data logger
The data logger provides the same information in the web browser as the data logger on the display. The values and the time period can be selected using the menu bar above the diagram.
7.5. Status information
The status information in the websetup contains detailed informations about the HEA•THOR IoT.
State:
Current device status
Power:
Current heating power of the HEA•THOR IoT
Power L1:
Current heating power of the HEA•THOR IoT on L1
Power L2 (only HEA•THOR IoT 9 kW):
Current heating power of the HEA•THOR IoT on L2
Power L3 (only HEA•THOR IoT 9 kW):
Current heating power of the HEA•THOR IoT on L3
SELV Relays state:
Current state of the SELV Relay (0 = off; 1 = on)
Temperature 1:
Current measured value of internal temperature sensor T1
Temperature 2:
Current measured value of external temperature sensor T2
Boost active:
Shows if boost is active (0 = not active; 1= boost active)
Next legionella boost:
Shows the days until the next legionella boost starts (only if activated)
Date:
Shows the actual date
Time:
Shows the actual time
Mains voltage L1:
Current input voltage
Mains current L1:
Actual input current on L1
Mains current L2:
Actual input current on L2
Mains current L3:
Actual input current on L3
Mains frequency:
Current mains frequency
Temperature power stage:
Current mains of the power stage
Cloud state:
Current state of the cloud connection.
Regardless of whether cloud mode is active or not, it is displayed whether the my-PV cloud server is accessible. If the information "99, Timeout" is displayed at this point, check in the user interface of your router whether the HEA•THOR IoT has a connection to the router and whether it can establish a connection to the Internet.
7.6. Device settings
The "Device Setup" in the websetup allow you to configure all the necessary settings for the HEA•THOR IoT.
7.6.1. Cloud Mode
In this menu item, you can activate or deactivate Cloud Mode.
7.6.2. Hot Water
You can set the target temperature and configure the "Boost Mode" in the ‘"Hot Water" menu.
Boost Mode "On":
When this function is activated, the connected heating element is supplied with maximum power.
Boost Mode “Relay”:
Alternatively, the minimum temperature can be maintained by activating an external heat source. Details on the wiring of the potential-free contacts can be found in the assembly instructions.
There are two time slots available for ensuring the minimum temperature is maintained. The start and end time can be specified in full hours.
Tip
If you only want to use the BOOST button, enter 0 in all fields of the two time windows.
7.6.3. Time
The region and location can be selected in the Time menu. A time server or NTP server (NTP = Network Time Protocol) can be defined in the web setup using a domain name.
7.6.4. IP Settings
In the IP Settings menu, you can read the current network data of the HEA•THOR IoT, set the type of connection (Ethernet.Mode) and specify whether the HEA•THOR IoT connects to the network with a static IP address.
7.6.5. Legionella Protection
To ensure drinking water hygiene, a time period can be specified by which a defined minimum temperature must be reached again after the last time this value was reached at the internal sensor T1. The number of days of this period can be set between 1 and 14. It is possible to specify a time for the start of the legionella programme. The factory setting is for a period of seven days, the legionella programme starts at 8 p.m., the target temperature is 60 °C and the programme is deactivated. The HEA•THOR IoT is supplied with maximum power until the target temperature set for the legionella mode at sensor T1 is reached.
7.6.6. Hysteresis
Here, you can set the hysteresis for both the maximum target temperature and the minimum boost temperature. The HEA•THOR IoT will only start heating again when the temperature has fallen by the set value from the maximum or boost temperature.
7.6.7. Version Firmware
In the Firmware version menu, you can view the current firmware version, check for updates and perform updates. It is also possible to restart the HEA•THOR IoT or perform a factory reset.
8. Control options
8.1. Modbus TCP/ RTU, http
No further settings are required for Modbus TCP/RTU and http. These interfaces are already activated by default.
A detailed description of the listed controls can be found in the HEA•THOR IoT Documentation Control.
8.2. API

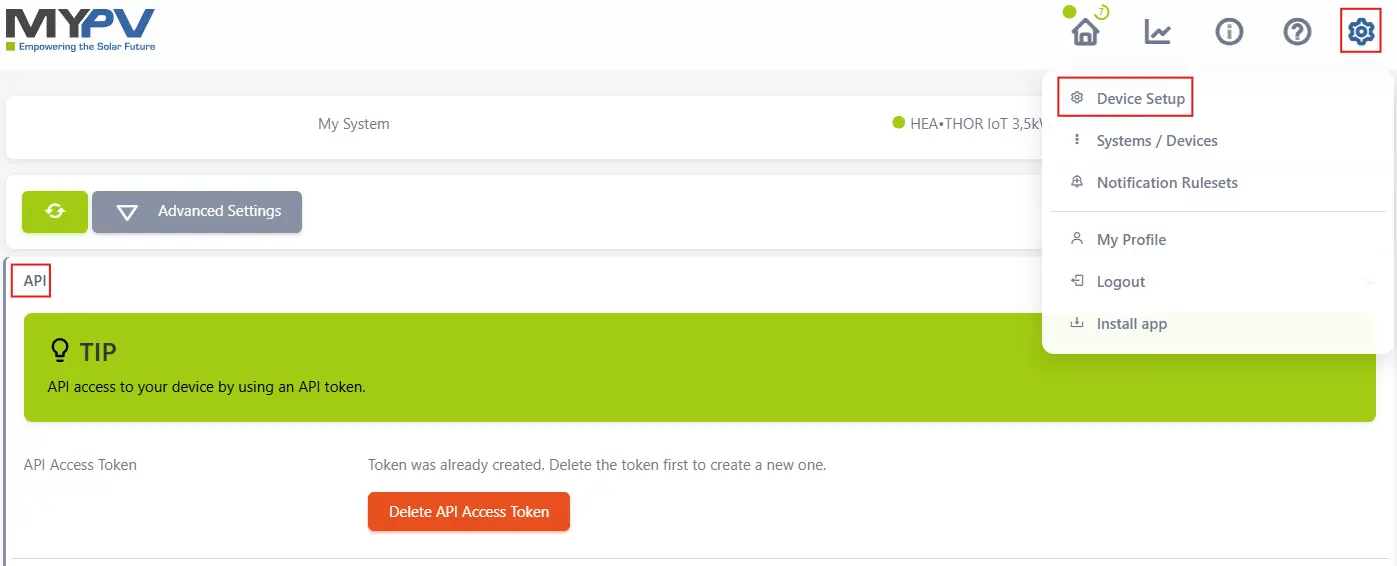

The my-PV Cloud is required to use the API interface. Under Settings --> Device settings --> API, you will find the option to generate an API token in order to use the API interface.

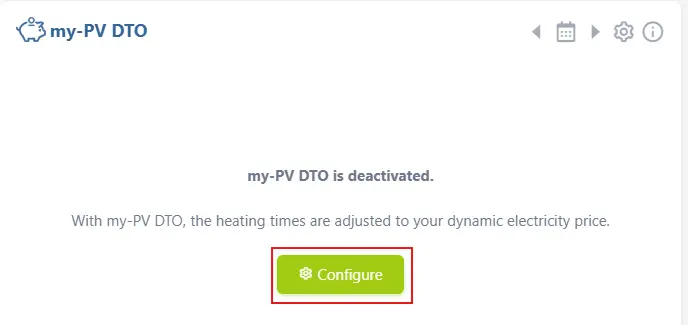

8.3. my-PV DTO
Der my-PV DTO kann über das entsprechende Widget, in der Cloud aktiviert werden.
9. Error table
| error category | Description | LEDs | troubleshooting |
|---|---|---|---|
Temperature | STL (safety temperature limiter) has triggered | 2&9 | Wait until the temperature has dropped by 10 °C and reset the STB as described in section 6.2. |
Temperature | The standard temperature sensor T1 is missing. | 2&10 | Check if the 3-pin plug on the back of the HEA•THOR IoT is properly inserted. |
Temperature | STL (safety temperature limiter) temperature sensor missing | 2&11 | Check if the 3-pin plug on the back of the HEA•THOR IoT is properly inserted. |
Temperature | Power unit overheating | 2&12 | The power stage has an excessive temperature (>85°C). Power can only be supplied again once the device has cooled down to 50°C. |
Relay open | N relay does not close | 4&9 | Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT. |
Relay open | L1 relay does not close or no heating element is connected | 4&10 | Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT. |
Relay open | L2 relay does not close or no heating element is connected | 4&11 | Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT. |
Relay open | L3 relay does not close or no heating element is connected | 4&12 | Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT. |
error category
Temperature
Description
STL (safety temperature limiter) has triggered
LEDs
2&9
troubleshooting
Wait until the temperature has dropped by 10 °C and reset the STB as described in section 6.2.
error category
Temperature
Description
The standard temperature sensor T1 is missing.
LEDs
2&10
troubleshooting
Check if the 3-pin plug on the back of the HEA•THOR IoT is properly inserted.
error category
Temperature
Description
STL (safety temperature limiter) temperature sensor missing
LEDs
2&11
troubleshooting
Check if the 3-pin plug on the back of the HEA•THOR IoT is properly inserted.
error category
Temperature
Description
Power unit overheating
LEDs
2&12
troubleshooting
The power stage has an excessive temperature (>85°C). Power can only be supplied again once the device has cooled down to 50°C.
error category
Relay open
Description
N relay does not close
LEDs
4&9
troubleshooting
Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT.
error category
Relay open
Description
L1 relay does not close or no heating element is connected
LEDs
4&10
troubleshooting
Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT.
error category
Relay open
Description
L2 relay does not close or no heating element is connected
LEDs
4&11
troubleshooting
Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT.
error category
Relay open
Description
L3 relay does not close or no heating element is connected
LEDs
4&12
troubleshooting
Check whether the heating rod plug is correctly connected to the rear of the HEA•THOR IoT.
