Multi-storey residential building in Kapfenberg

ELWA ensures optimal energy management not only in single-family houses, but also in apartment buildings.

Facts about the project

System
Developer
Apartments
PV power
Hot water storage
Heating system
Hot water generation

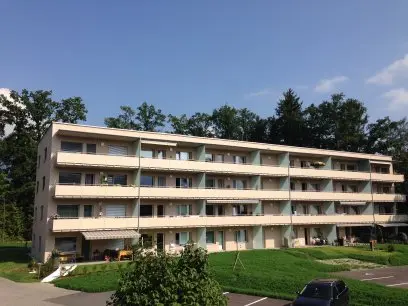

Referenz_ELWA_Leharweg my-PV

With a photovoltaic capacity of up to 2.1 kWp, the ELWAs replace the previously used 4 to 10 sqm solar thermal systems.

The ELWA from my-PV ensures optimal energy management in multi-family houses as well as in single-family houses. Use of the ELWA has reduced the centralised building technology in the project to a minimum. Hot water provision is entirely decentralised in the individual apartments. An electrical hot water provision device (ELWA) was installed in the existing hot water tanks (indicated in red). The individual photovoltaic systems on the roof provide the ELWAs with clean solar power.

Thanks to this technological innovation, the residential property does not need any heat distributed by pipework to heat hot water. Beside the space heating system, there is only one pipe per apartment for supplying cold water.

Use of the ELWA completely avoids the high energy losses caused by heat ring mains. The solar energy is converted into heat at the exact point where it is required.

Functional description of the ELWA

During the daytime, direct current is transported by electric cable from the PV modules to the ELWA, which uses it to heat the hot water in the tank. On days with low solar radiation, the system switches automatically to use standard household electricity as required. The ELWA thus always guarantees the provision of hot water.

This form of energy management does not require an inverter because the electricity is not fed into the grid. This dispenses with the need for any connection permits, and the installation or retrofitting is extremely simple. Thanks to the integrated MPP tracker, the ELWA can also be used for projects in which the PV systems are installed in various alignments on the building. Using the ELWA makes the usually complex gridconnection of PV systems in large residential buildings unnecessary. This form of storage makes solar electricity an efficient solution. Even for this type of building.

ELWA data processing

An integrated data logger makes it possible to visualise the solar yields, the hot water temperature profile, and the amount of energy taken from the public grid to boost the hot water provision.

Over the course of an entire year, there is a hot water coverage ratio of up to 60% depending on the heating requirement. The PV excesses that cannot be used make up a mere 3-8%.

ELWA calculation tool

The recommended size of the PV system is based on the number of people in the household, or rather their water consumption. A value of 50 litres/day is assumed per resident. This corresponds to a required quantity of energy of around 1,000 kWh/year.

The annual yield of a photovoltaic system is approx. 1,100 kWh/kWp (Austria). With a recommended solar hot water coverage ratio of 50%, this gives a system capacity of 2 kWp for a four-person household.
