AC•THOR

The application video explains the benefits and versatility of AC•THOR.

Hot water heating and space heating with solar power

AC•THOR is a 0 - 3 kW linearly controlled photovoltaic power manager for hot water, electric heat sources and optional space heating.

Simple & efficient: AC•THOR controls electrical heat sources depending on the availability of PV energy and heat demand. And that for both hot water, as well as for space heating. It ensures your personal living comfort fully automatically. In a residential building that is built or renovated according to current energy standards, AC•THOR replaces conventional, water-based building installations. Missing residual energy can be obtained from the public grid.

Of course, AC•THOR can also be integrated into conventional, water-based systems such as buffer storages. Its flexibility leaves nothing to be desired. Thanks to the built-in touch display, it can be operated without any additional devices at any time and it is easy to install.



Hausgrafik Acthor PM EN

AC•THOR in combination with my-PV Power Meter

In combination with my-PV Power Meter, AC•THOR uses excess energy from your photovoltaic system to supply electrical heat sources such as immersion heaters, electric heating mats or infrared panels linearly with power. This ensures optimal energy utilization.

Further information about my-PV Power Meter.





Hausgrafik Acthor EN

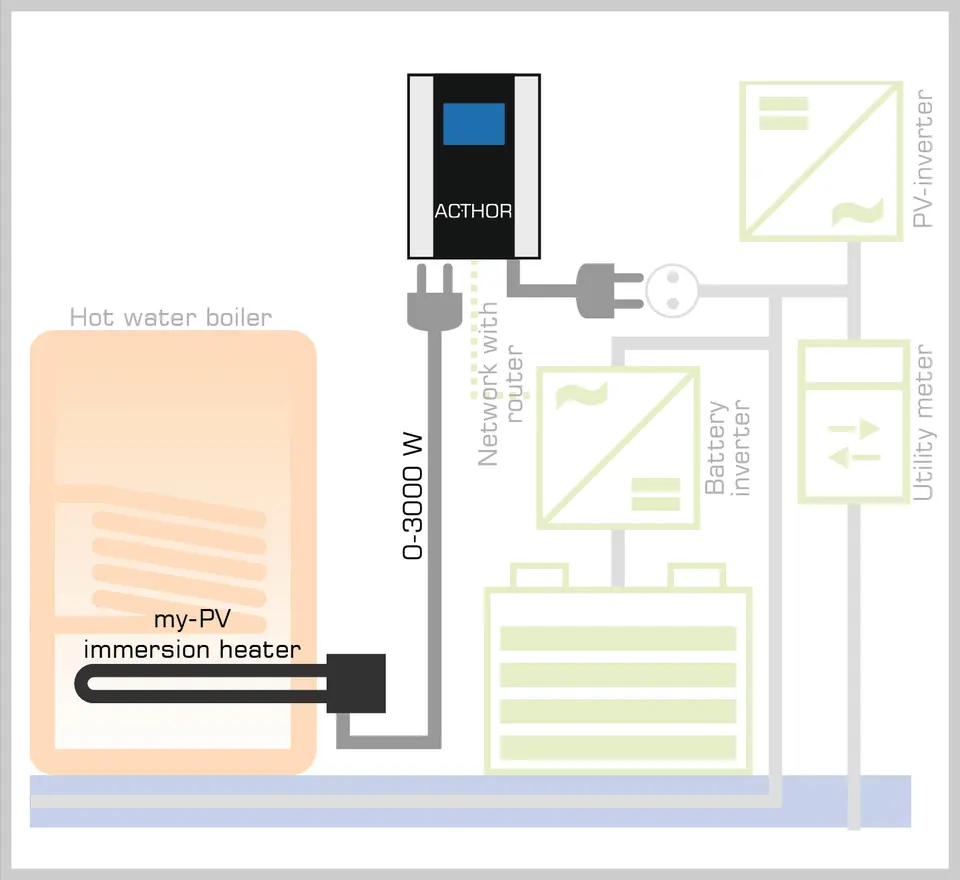

AC•THOR in combination with battery storage

In combination with compatible batteries, AC•THOR, like AC ELWA-E, performs a hybrid storage function. Not only the hot water, but also the building mass can be used as storage.

Thus, even with larger PV systems, excess PV energy is optimally used. Optimal priority regulation between battery and heat storage is guaranteed.

Click here for the compatible manufacturers.





Hausgrafik Acthor SmartHome EN

AC•THOR in combination with Smart Home

Thanks to its flexible control, the AC•THOR also communicates with energy management systems. As an alternative to my-PV Power Meter, the excess information can also be received from these sources. Thus there are no limits for the integration into individual home controls. Data can be visualized in the Smart Home System.

Click here for the compatible manufacturers.



Tip AC•THOR works perfect with our immersion heater but it can also be easily used with existing heating rods.



Advantages

hakerl 30% cost savings over conventional systems with self-generated energy
hakerl Maintenance-free by cable instead of pipes
hakerl Reduction of the boiler room space
hakerl Flexible control by various inverters, battery systems and Smart Homes
hakerl Allows affordable housing also in apartment buildings
hakerl Up to 85% PV self-consumption even without battery storage



Tip Here are the projects that we have implemented with innovative partners.



Accessory

Immersion Heater 3kW

Direct connection to AC•THOR via mains cable and socket. Minimal cabling and installation costs.

Temperature sensor

AC•THOR allows the connection of up to 4 special digital temperature sensors



Technical data

Mains voltage 230 V, 50 Hz
Outputs 0-3000 W linearly controlled + relay output 16 A
Mains connection Single-phase, grounded plug, 230 V, 50-60 Hz
Load connection Insulated socket for resistive loads
Display Colour graphic, touch screen 2.83
Connecting cable 2,8 m
Dimensions (WxHxD) 135 x 210 x 65 mm
